Fallprotec general info:

Fallprotec catalog download

Providing suitable protection from falling and safety precautions for those working at a height is crucial in order to ensure safe maintenance work during the implementation and later on.

The EN795/2012 European standard that came to effect on 31st January regulates he rules concerning precautions on attachment points and fall prevention systems with which Fallprotec products are completely compatible

Fallprotec has been a significant actor of fall prevention systems market in Europe since 2004.

Due to continuous innovations and widening product range the company is present worldwide.

Our company beside product distribution also undertakes survey at the premises, planning, implementation the required periodic supervision and maintenance.

Products:



Fix attachment points

Simple and economic but also effective way of fall prevention.
- can be implemented afterwards
- It is suitable for two people’s safe working process at the same time as well as restrictions and precautions concerning the working area.
- for safe maintenance works (e.g. for supervision of  air-conditioning fixing, air fan, chimneys)
- it can be attached to any structure (wood, metal, concrete) that possesses the proper solidity according to requirements

Anchor Ring Twinfix 2013 PTA 016
Swivelling Anchor Point PTA015
Mega Swivel 5k SWY100N
Anchor ring Twinfix LDV 057
SafeAnchor LDV 055
Anchor point large opening LDV029




Steelrope protection (SecuRope®)

It is the ideal choice for industry halls, crane tracks, roofs, green roofs, hangars. Approaching to working area and work processes can be carried out safely with the help of it. The worker is approaching the working area by being attached to a system consisting of an 8mm diagonal steel rope. The safety slide can smoothly cross in between the attachment points without bearing the danger of accidental dismantling or running down of ropes. A part of the system is an energy absorber applied with a rope which can decrease load to the level prescribed in standard (6kN) on the user in case of an accidental slip or fall.

Benefits of steel rope systems:
- can be excellently used in extreme conditions
- can be fixed afterwards to any kinds of roof, wall, ceiling structures
- it adapts and forms to occurring curves, bends, level differences
- a system can provide working process of 2-4 persons at the same time
- it requires minimal maintenance
- horizontal and vertical steel rope systems can be combined with each other


Implementation facilities:
- Horizontal (SecuRope Horizontal)
It can provide ideal protection on roofs and halls

- Vertical (SecuRope Vertical)
It can be excellently applied for ensuring short terms climbing and it can be implemented on existing ladders.




Rail systems (SecuRail®)

It offers reliable solutions in case of extreme environment conditions, can be variously used on telecommunication towers, roofs, halls, office buildings.

Benefits of rail systems:
- guarantees long life cycle when maintenance properly
- can be implemented afterwards
- horizontal and vertical systems can be combined with each other
- fast implementation
- resist corrosion
- aesthetic design
- can be used as a safety letter with special accessories

Implementation facilities:
- Horizontal (SecuRail Horizontal)
- Vertical (SecuRail Vertical)




Safe ladder (SafeLadder®)

They provide safety of high degree due to fall prevention rail systems integrated into the ladder. It provides working processes of 2 persons at the same time in case the distance between the user persons is minimum 4 m.

Benefits of safety ladders:

- Simple usability

- High degree protection

- Long lifecycle

- Fast and easy implementation

- Can be combined with horizontal systems




Suspended bridges, mobile descending points (Works in suspension)

Fall prevention system compatible with EN1808:2010 European standard is an ideal choice for maintenance, surface cleaning, in shafts, chimneys.

Benefits:

- Provides working of 2-4 people at the same time

- Specifically producible attaching consoles

- High corrosion resistant feature

- Easy deployability

- Choosable RAL colour

- The rail system can be covered with false ceilings

- Motorised facility

Implementation facilities:

-                     BMU (Building Maintenance Unit)





-       SafeAccess C (Mobile descending points for alpinists)





-          SafeAccess




Personal Protection Equipment (PPE)

Among our distributed products wide range of personal protective gears can be found such as body strap belts, connectors, reins, descending tools, helmets all of which are compatible with the following European standards:

EN361:2002 / EN355:2002 / EN358:2000 / EN362:2005 / EN360:2002 / EN341:2011 Type A / C/EN1496:2007 / C/EN1496B

These protection gears are compatible with protection systems distributed by us.




Certificates

TEC0023-UK-SafeAccess C and Platform.pdf TEC0003-UK-Anchor ring Twinfix LDV 057.pdf
TEC0006-UK-End Anchor SecuRope LDV 002.pdf TEC0004-UK-Mega Swivel 5k SWY100N.pdf
TEC0008-UK-Gliders SecuRope Horizontal-inclined LDV001-075-060-093.pdf TEC0015-UK-SpotAnchor LDV049-052-077.pdf
TEC0009-UK-Switch SecuRope Horizontal-Inclined LDV050-048.pdf TEC0016-UK-Swivelling Anchor Point PTA015.pdf
TEC0010-UK-End anchors SecuRope between walls LDV054-053.pdf TEC0019-UK-Anchor Ring Twinfix 2013 PTA 016.pdf
TEC0011-UK-SecuRope NEO 2012 on walls.pdf TEC0020-UK-Lifeguard Portable System FLG001.pdf
TEC0012-UK-SecuRope NEO between two walls or on ceiling.pdf Attestation d'Examen CE de Type n°0082.1084.160.09.14.0305 - Securope EVO 2014.pdf
TEC0013-UK-SecuRope EVO on posts.pdf Attestation d'examen CE de type - Zip! sur Securope- N°0082 1084 160 12 0052.pdf
TEC0014-UK-Temporary lifeline LDV101-102.pdf Extension de l'Attestation d'examen CE de Type n°0082.1084.160.11.10.0310 EXTN°02.01.14- Securail Vertical + VIA4 2013.pdf

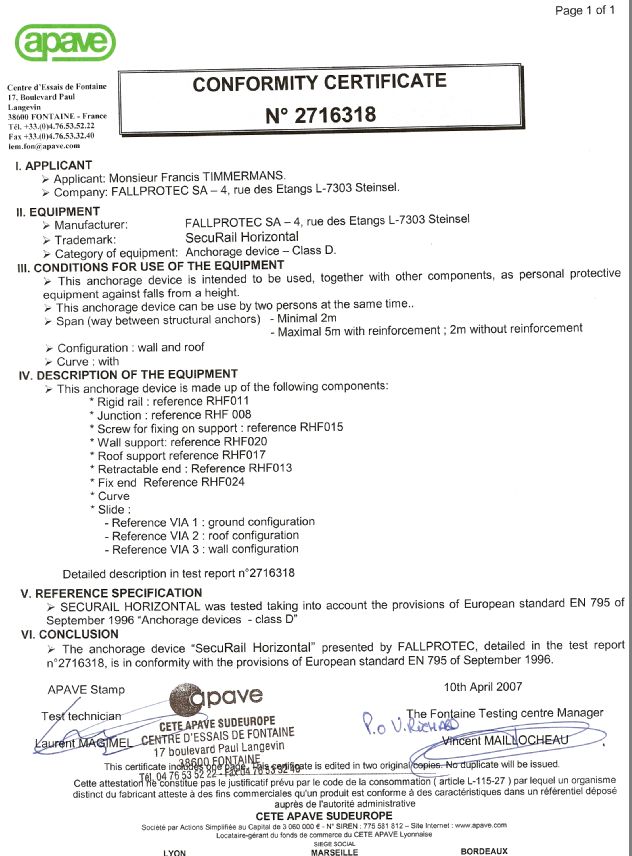

TEC0026-UK-SecuRope on standing seam roof.pdf Certificat securail horizontal-GB.jpg
TEC0027-UK-SecuRope on multipost-hot deck.pdf Extension de l'Attestation d'examen CE de Type n°0082.1084.160.11.10.0309 EXTN°02.01.14- SafeLadder + VIA4 2013.pdf
TEC0028-UK-Toggle bolts for Multipost and Spotanchor.pdf Attestation de conformité n°AT5146195 - LDV29 Yellow Anchor Eye.pdf
TEC0029-UK-Turnbuckle for SecuRope.pdf Attestation de conformité N°AT5967034 TWINFIX.pdf
TEC0023-UK-SafeAccess C and Platform2.pdf Attestation de conformité EN795-A-2012 n°13.6.0197 at - Spotanchor 2012 UK.pdf
TEC0017-UK-Roof Car RC402.pdf Attestation d'examen CE de Type n°0082.1084.160.07.12.0159 - Skywalk Ancre E.pdf
TEC0022-UK-SafeAccess rail and Flex bow assembly.pdf Attestation de conformité n° AT 5109376 - SAFEANCHOR.pdf
TEC0005-UK-B Clamp Mobile Anchor Point PTA001-002-003.pdf FXB 001 Technical Sheet-UK.pdf
TEC0001-UK-Anchor point large opening LDV029.pdf Roof Car RC 402.pdf
TEC0002-UK-SafeAnchor LDV 055.pdf
